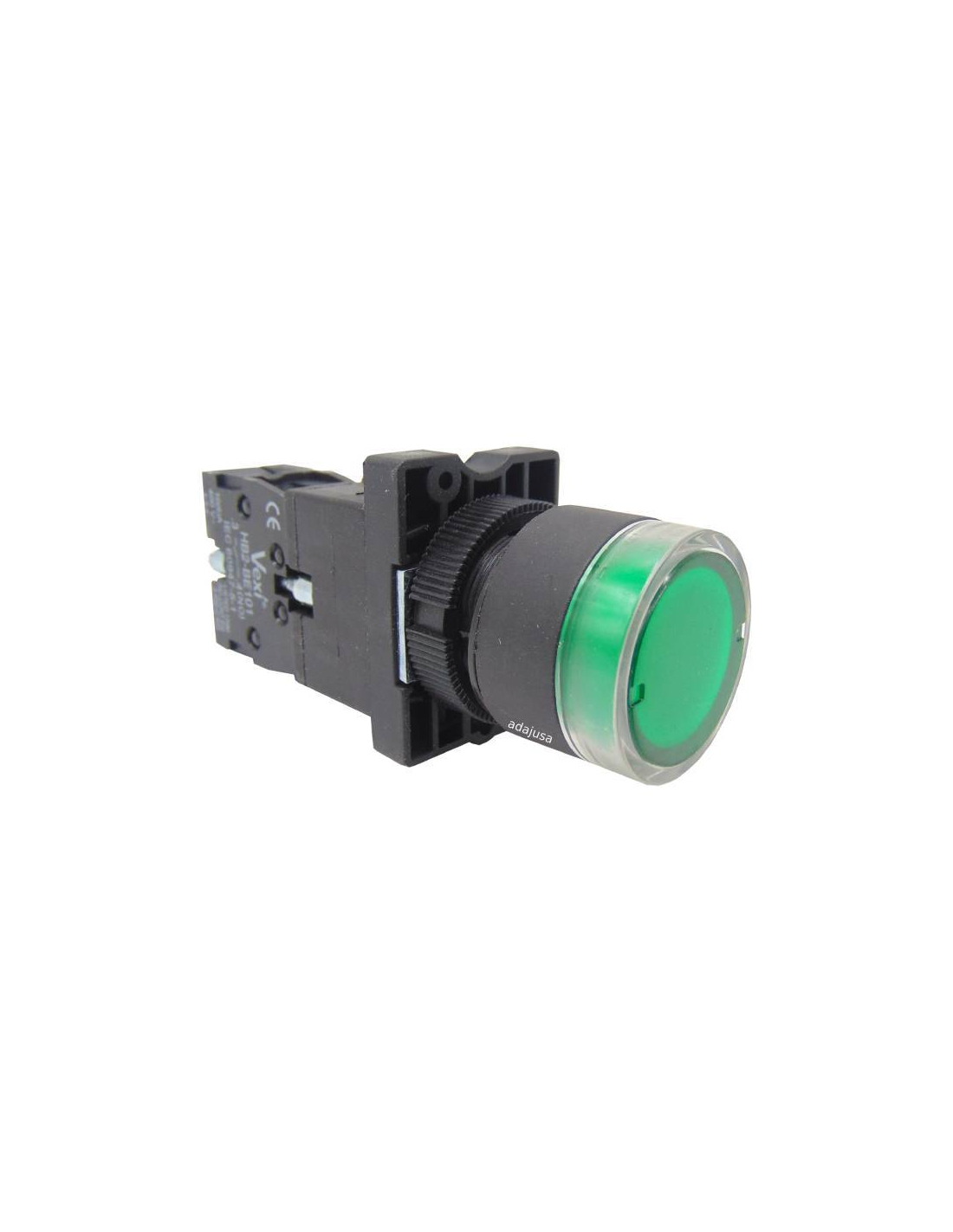

Bright green open contact pushbutton (NA) complete
Bright green open contact pushbutton (NA) complete

Bright green open contact pushbutton (NA) complete

€3.76 Tax included

€3.11 tax excl.

Luminous green pushbutton with one open contact (NO).

The supply includes the complete luminous pushbutton with an open contact.

Part number: XB2-EW3361

Esquema eléctrico pulsador verde


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Luminous green pushbutton with an open contact (NA) Diameter 22 mm. Possibility to add additional contacts. No voltage reducer is included, the bulb tension must match that applied. The bulb is not included.

The supply includes the complete pushbutton with a luminous open contact.

This pushbutton can receive additional contacts, type XB2. A maximum of 2 contacts can be installed.

Features:

  • Manufacturer/Supplier: Denor
  • Reference: XB2-EW3361
  • Color: green.
  • Registration: none.
  • Type of bushing: Ba9s.
  • Maximum bulb voltage: 380 V.
  • Contact: 1 NA.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 mOhm.
  • Degree of protection: IP40

Dimensiones pulsador plástico luminoso
