Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER
Harmony XB5 blue push button head - SCHNEIDER

Harmony XB5 blue push button head - SCHNEIDER

€3.71 Tax included

€3.07 tax excl.

Blue push button head diameter 22 mm. Manufactured with plastic bezel making it ideal for applications requiring good chemical resistance or double electrical insulation.


Part number: ZB5AA6




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns

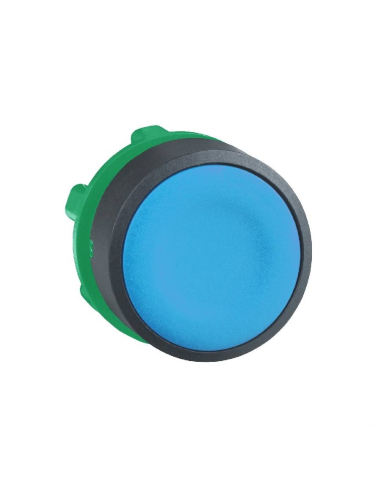

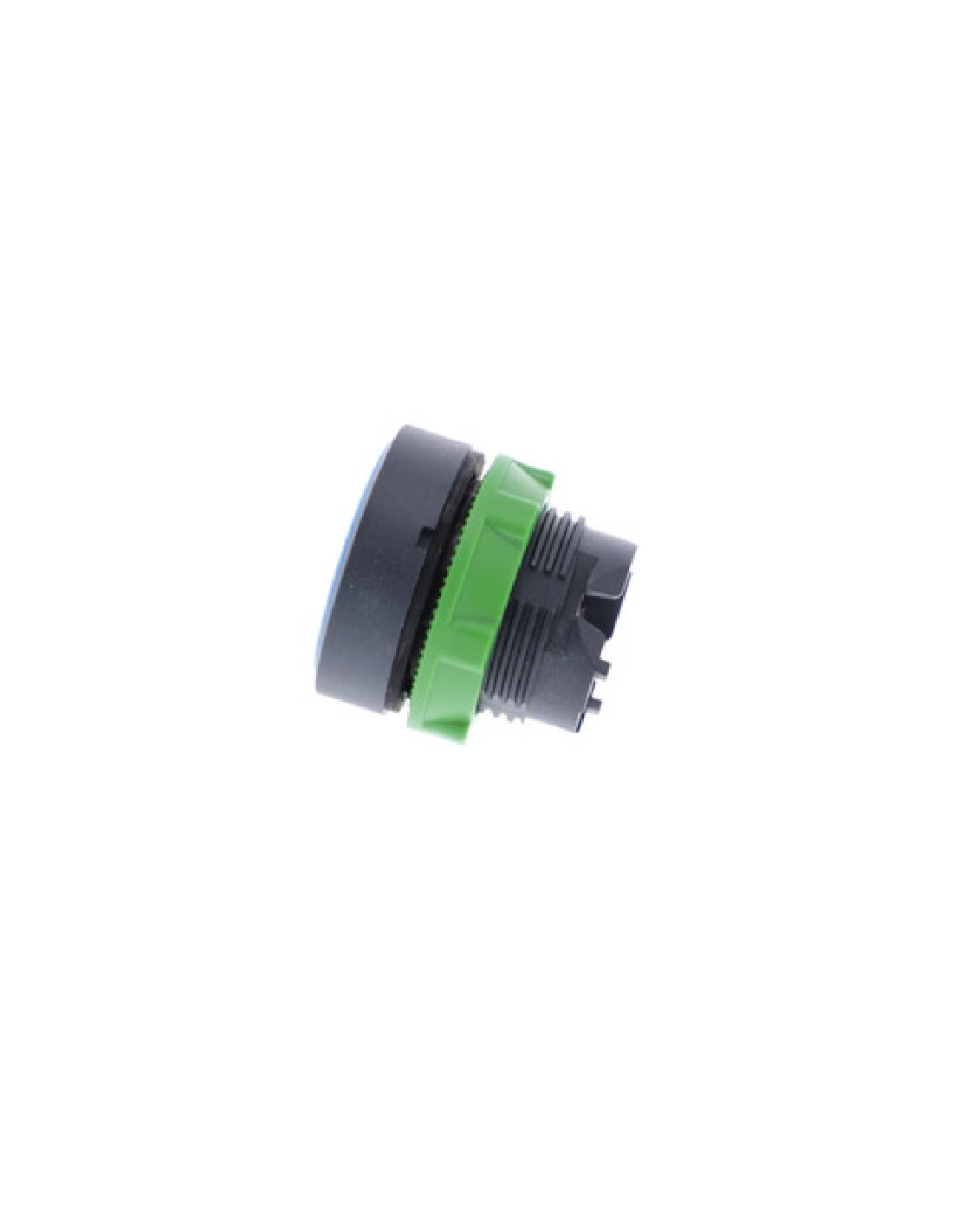

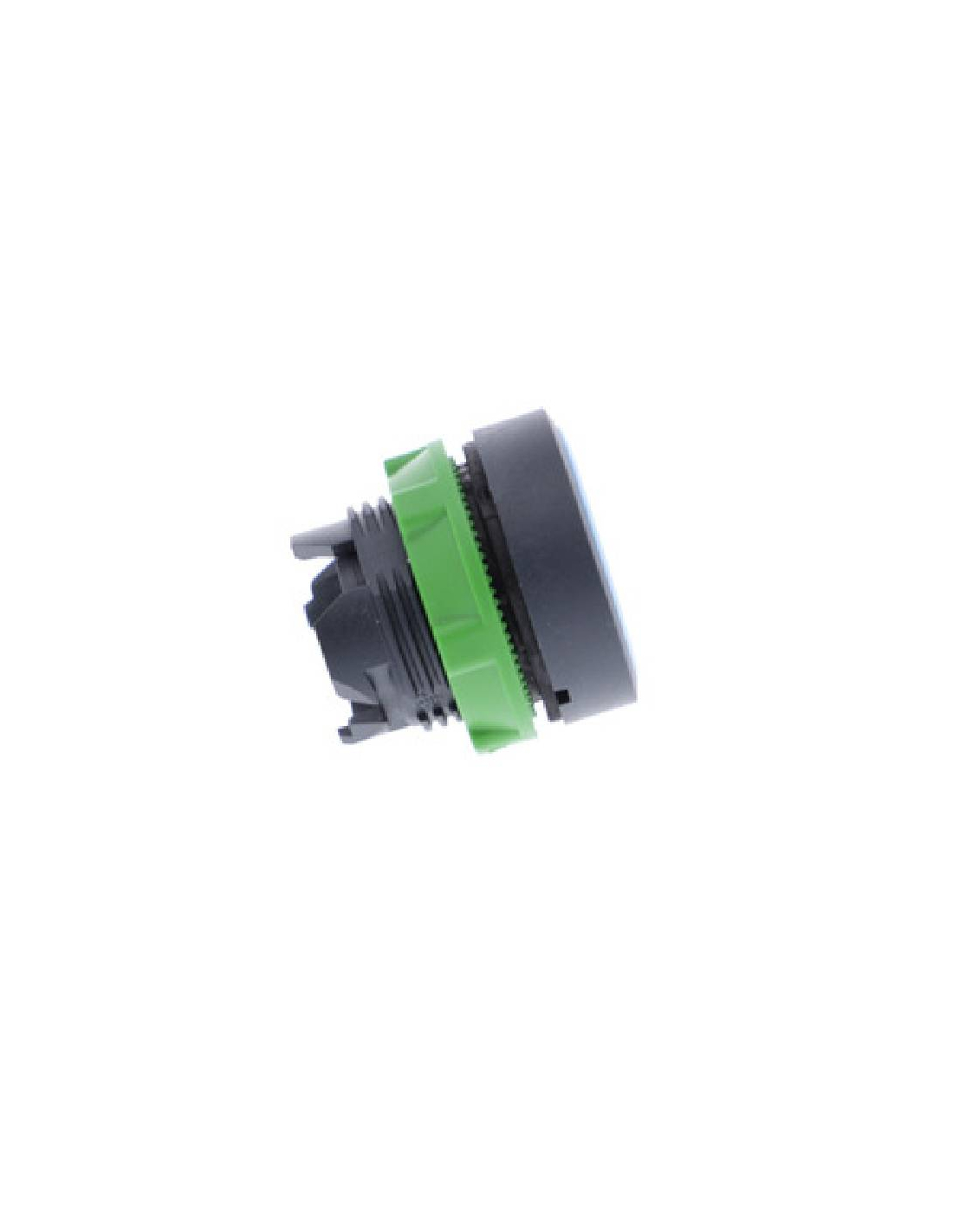

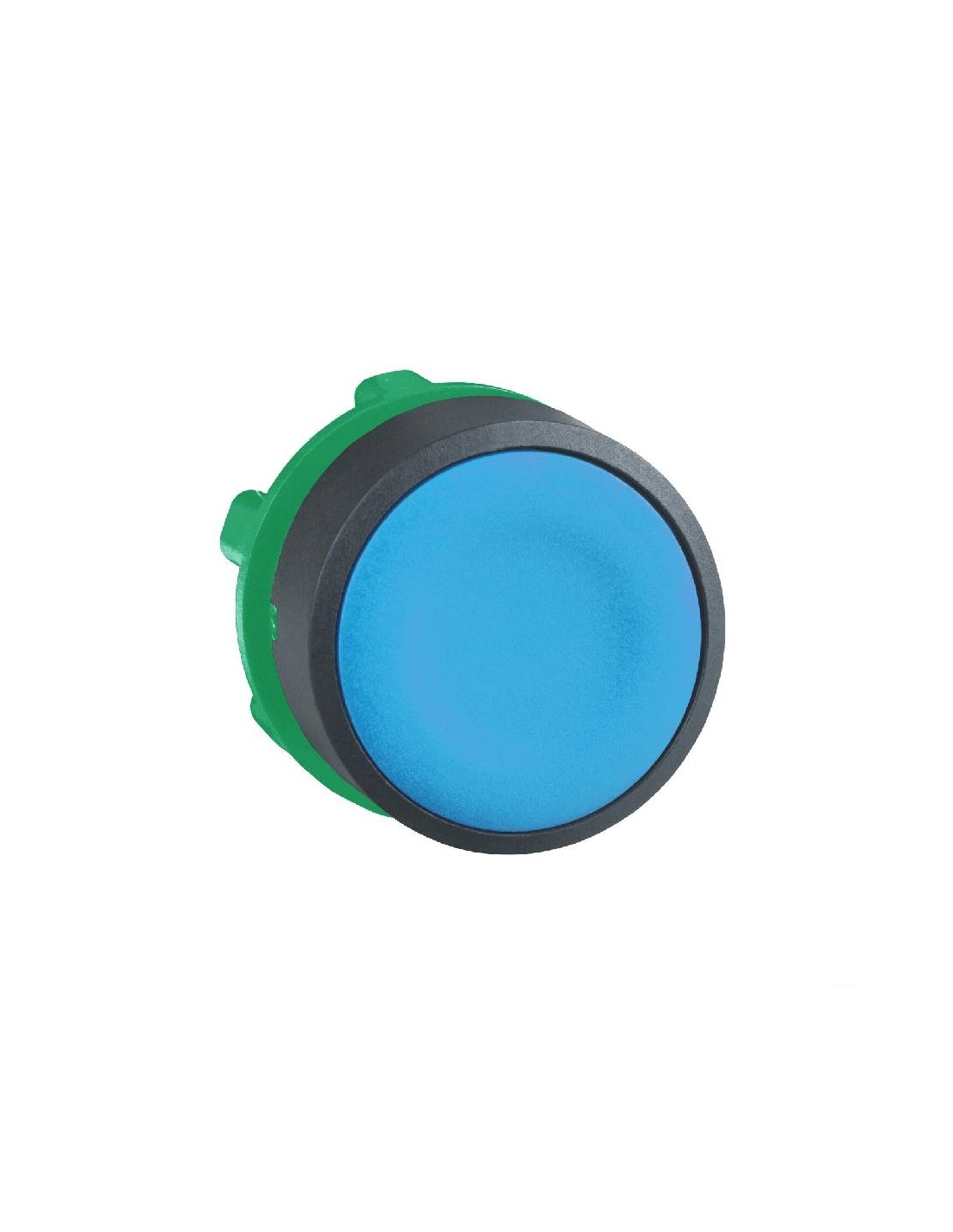

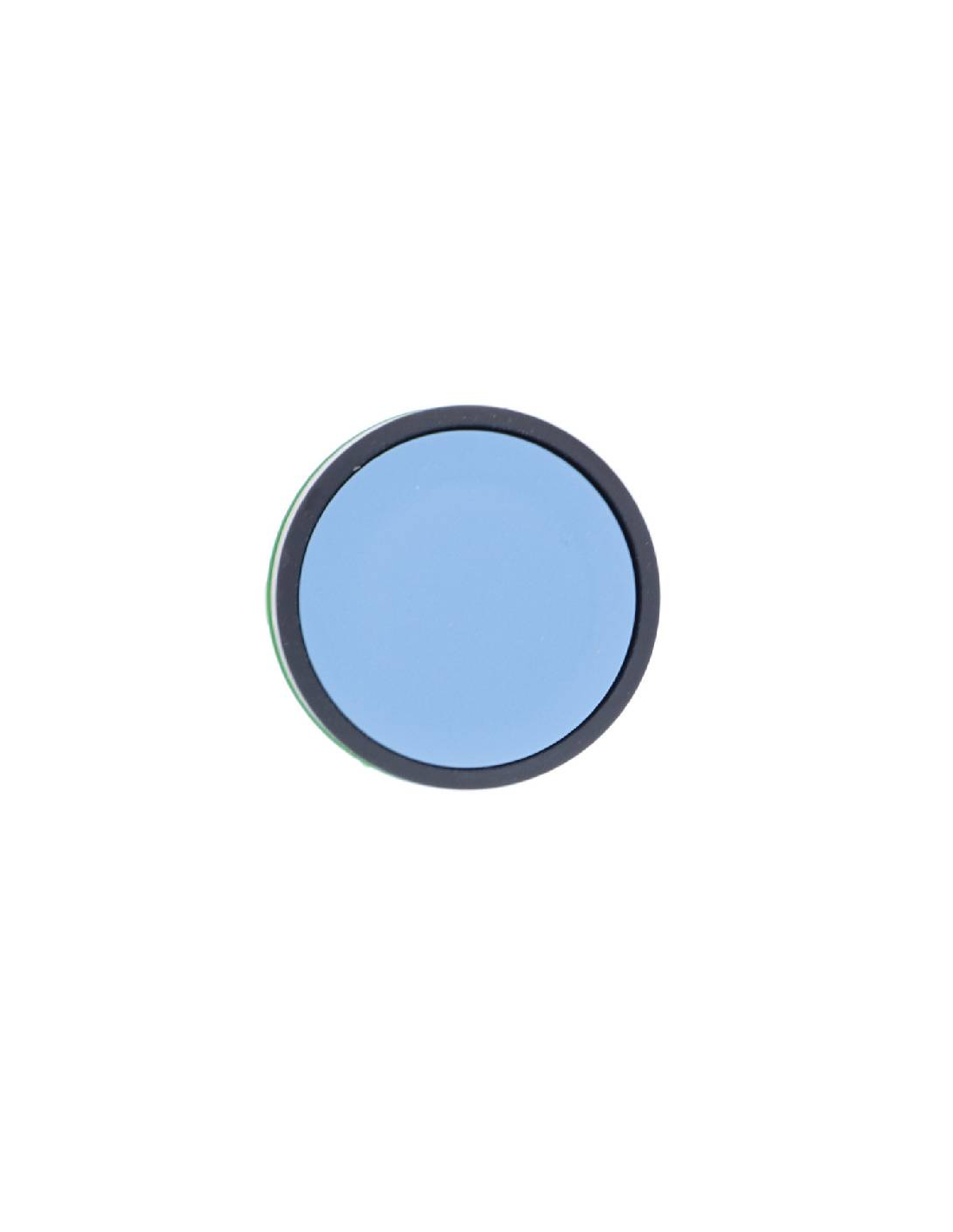

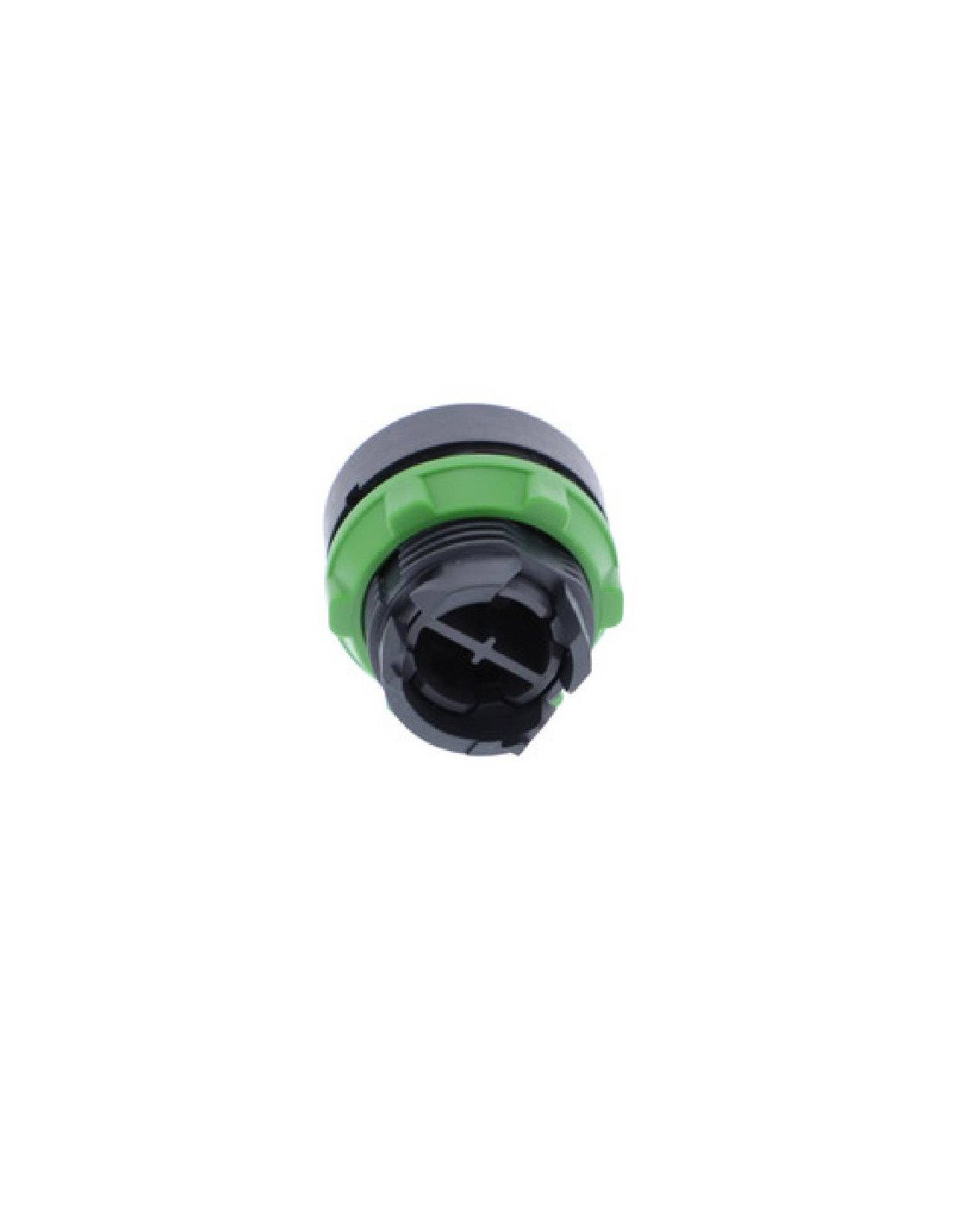

Flush plastic push button head in blue color, diameter 22 mm. Based on a spring-loaded impulse/return mechanism (instantaneous action), it features an ergonomic interface for machine and process control. It is easily installed in standard 22 mm diameter die-cuts.

Its design is highly resistant to impact, dust, water and vibration thanks to its IP66 degree of protection, making it suitable for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation.

No contacts are included in the scope of delivery, these must be purchased separately.



Characteristics:

  • Manufacturer: SCHNEIDER
  • Ref. No.: ZB5AA6
  • HARMONY XB5 SERIES
  • Operator profile: Blue flush, no marking
  • Operator type: Spring return
  • Mounting diameter: 22mm
  • Mechanical durability: 10000000 cycles
  • Operating Temperature: -40...70C
  • Overvoltage category: Class II in accordance with IEC 60536
  • IP degree of protection: IP66 according to IEC 60529
  • IK degree of protection: IK03 according to IEC 50102



Dimensions






    For further information, you can download the data sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
