Illuminated white pushbutton ("↑" inscription) open contact (NO) - NY Series

Name: Illuminated white pushbutton ("↑" inscription) open contact (NO) - NY Series
Brand: TRACON
SKU: NYG3-P3L
Price: 4.4528 EUR
Availability: PreOrder

€4.45 Tax included

€3.68 tax excl.

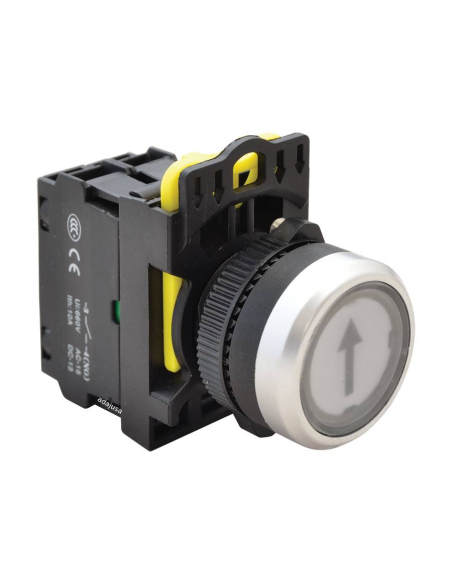

White illuminated pushbutton with " ↑ " inscription and one open contact (NO) . 22 mm diameter snap-action pushbutton, made of plastic with a silver bezel. Intended for mounting on machinery control panels and control boxes in general. It features high protection on the front side, IP65.

The supply includes the complete pushbutton with one normally open contact (1 NO) and a lamp holder with LED bulb. The cable is secured with a screw.

Reference: NYG3-P3L

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flush-mounted, white plastic illuminated pushbutton with "↑" inscription and one open (NO) contact, 22 mm in diameter. This snap-action pushbutton is made of high-strength plastic and features a modern design incorporating a silver bezel. It is suitable for mounting on electrical control panels for machinery and electrical control boxes in general. The pushbutton head bracket allows for mounting up to two contacts, both open and closed. This electric pushbutton is typically used as a start button for machinery, motors, and electrical equipment.

Designed for intensive applications requiring high operational reliability and ease of assembly. The pushbutton can be installed on panels, electrical control cabinets, and control boxes for machinery, air conditioning, industrial, and general applications. Compliant with IEC 60947. It features high protection on the front side, IP65.

The supply includes the complete pushbutton with one open contact and the lamp holder with a BA9S LED bulb. Additional contacts can be added, up to a maximum of two.

Characteristics:

Manufacturer: TRACON
Reference: NYG3-P3L
Head color: White
Head inscription: "↑"
Cap type: Ba9s
Bulb voltage: 230V
Mounting hole: 22mm
Material: Plastic
Contact : 1 open (NO). Additional contacts can be mounted.
Nominal working current Ie (AC 1, 230V): 6A
Nominal working current Ie (AC 15, 230V): 3A
Nominal working current Ie (DC 13, 250V): 0.27A
Nominal insulation voltage Ui: 660V
Mechanical durability: 1,000,000 cycles
Operating temperature: -25 to +40ºC
Protection class: IP65 (from the front side)
Regulation: EN 60947-1, EN 60947-5-1

Professional use material, install in compliance with the regulations in force at the place of installation.
