Green push button open contact (NO) Harmony XB4 - SCHNEIDER
Green push button open contact (NO) Harmony XB4 - SCHNEIDER

Green push button open contact (NO) Harmony XB4 - SCHNEIDER

€8.93 Tax included

€7.38 tax excl.

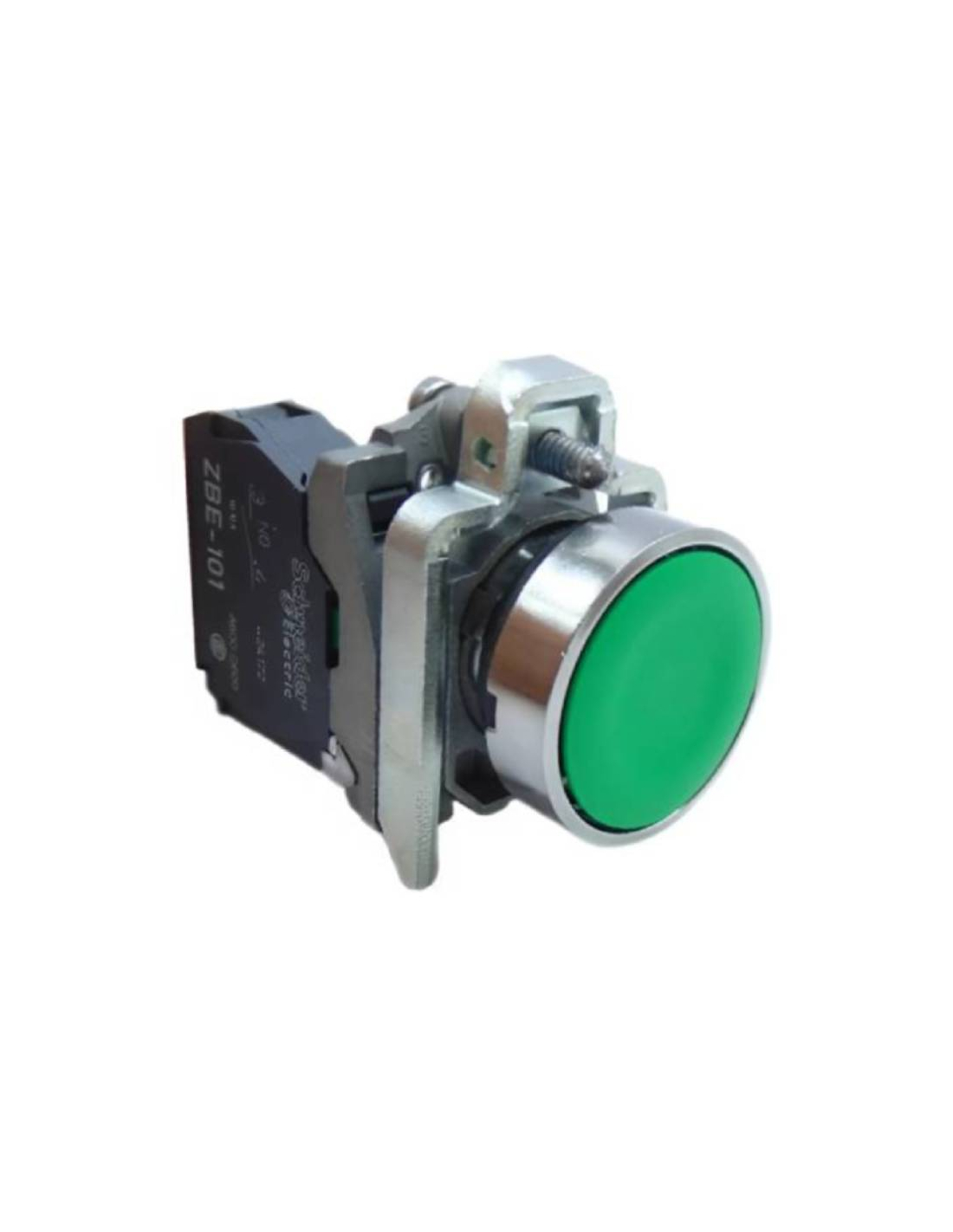

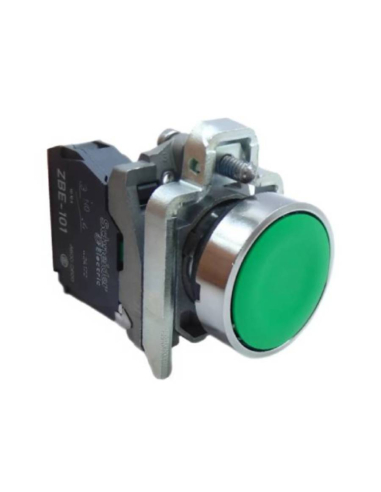

Green metal push button, diameter 22 mm, 1 open contact (NO), metal body and chrome-plated edge.

The supply includes the complete push button with one open contact (1 NO). Mounting diameter 22.5 mm. Cable fixing by screw.


Part no.: XB4BA31




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Flush green metal push button with one open contact (NO), diameter 22 mm. Operation based on a spring/impulse return mechanism, featuring an ergonomic interface for machine control.

Delivery includes the complete pushbutton with one open contact. Additional contacts can be added



Characteristics:

  • Manufacturer: SCHNEIDER
  • Ref. No.: XB4BA31
  • HARMONY XB4 SERIES
  • Operator profile: Flush green, without marking
  • Operator type: Spring return
  • Contact1 NO
  • Operator diameter: 22mm
  • Mounting diameter: 22.5mm
  • Short-circuit protection: 10A Cartridge fuse type gG
  • Conventional thermal current: 10A
  • Rated insulation voltage: 600V
  • Surge withstand voltage: 6kV
  • Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0,1A at 600V, DC-13 / 0,27A at 250V, DC-13 / 0,55A at 125V, DC-13 / 1,2A at 600V, AC-15
  • Bezel material: Silver chrome-plated metal
  • Material of fixing ring: Zamak
  • Contact material: Ag/Ni
  • Electrical durability: 1000000 cycles
  • Mechanical durability: 10000000 cycles
  • Operating temperature: -40...70C
  • IP degree of protection: IP66
  • IK protection degree: IK06

Dimensions (mm/in)




    For further information, you can download the data sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
