non-return valve diameter 4 tube - Aignep

Name: non-return valve diameter 4 tube - Aignep
Brand: Aignep
SKU: 6064 4
Price: 7.4657 EUR
Availability: InStock

€7.47 Tax included

€6.17 tax excl.

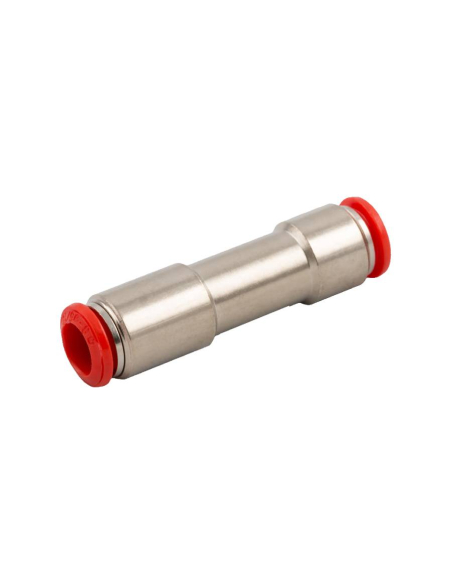

non-return valve with built-in fittings for diameter 4 tube, metal. It allows the passage of air only in one direction and prevents it in the opposite direction.

Series: Function
Reference: 6064 4

Non-return valve
aignep
normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

non-return valve with built-in fittings for 4 diameter metal tube. It allows the passage of air only in one direction (indicated by the date on the body) and prevents it in the opposite direction.

Actuated directly by air, it is used as a safety device, maintaining pressure in a part of the circuit, even when there is no pressure in the supply.

drawing 6062

Technical characteristics:

Manufacturer: Aignep
Reference: 6064 4
Size: Ø4mm tube
Fluid: Compressed air
Body material: Nickel-plated brass.
O-Ring: NBR
Maintenance spring: AISI 302 steel
Max pressure: 8 bar
Minimum pressure that guarantees closure: 2 bar
Indicative opening pressure: 0.2 bar
Flow rate ΔP=0.5:85
Flow rate ΔP=1: 120
Flow rate ΔP= free exhaust: 205
Temperature: -20 ºC + 80ºC.
Thread: Gas cylindrical ISO 228
Metric: ISO R/262

Dimensions:

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

catalogo serie fucntion

Download (8.93MB)
