Fixing bracket 600mm

Fixing bracket 600mm

Fixing bracket 600mm

€24.66 Tax included

€20.38 tax excl.

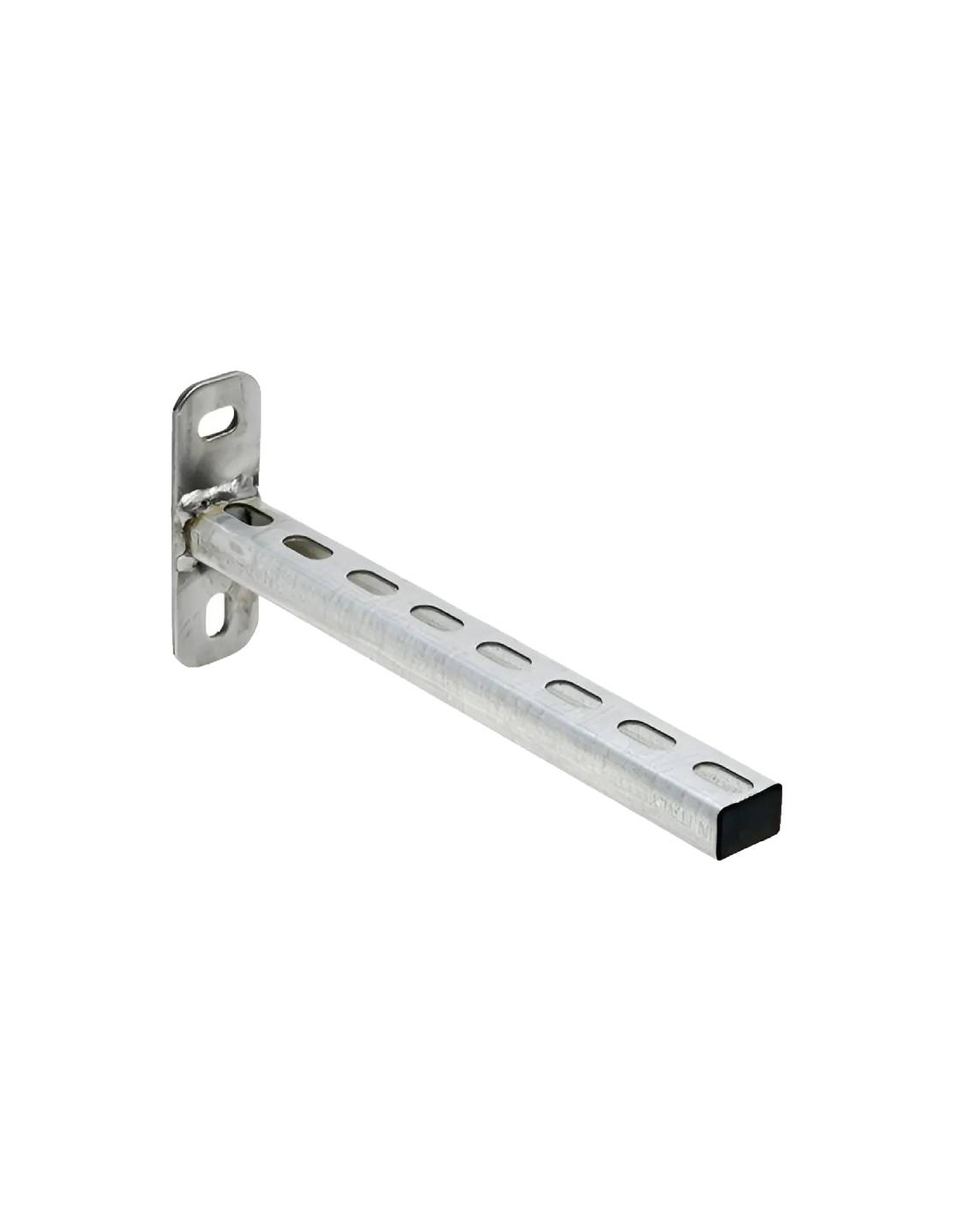

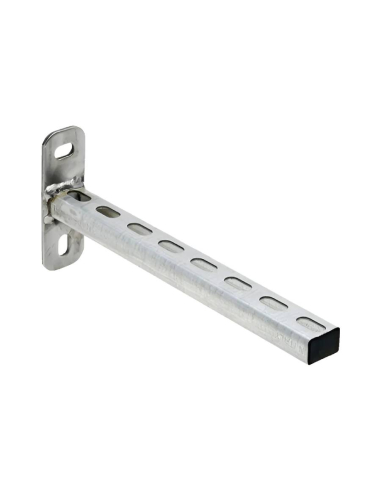

Metal bracket for wall mounting, length 600mm. This element allows the fastening of clamps to make deviations in the pipe network and to go around obstacles present in the installation.

Part number: 90830L

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Metal support with perforated guide, length 600mm. This type of support can be fixed to the wall, ceiling, on perforated guides or suspended; it allows to make deviations in the piping network and to go around obstacles present in the installation. It allows the fastening of the pipe placed on fixing clamps that are anchored directly on these supports.

It also allows the support of electrical trays, and various types of conduits

Characteristics:

Manufacturer: Aignep
Part number: 90830L
Series: Infinity
Length: 600mm
Fixing: Mural

Material for professional use, install in compliance with the regulations in force at the place of installation.
