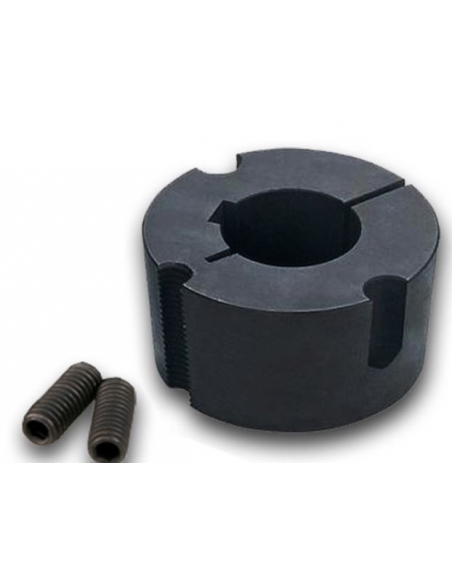

Conical bushing - taper lock size 3020
Conical bushing - taper lock size 3020

Conical bushing - taper lock size 3020

€54.23 Tax included

44.82 tax excl.

92R-T3020-28

Conical bushing, size 3020. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.

Reference: T.L 3020-0xx

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

The available shaft diameters are selected from the side menu (right).



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Shaft diameter
  • 25 mm
  • 28 mm
  • 30 mm
  • 32 mm
  • 35 mm
  • 38 mm
  • 40 mm
  • 42 mm
  • 45 mm
  • 48 mm
  • 50 mm
  • 55 mm
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm

No queries yet, leave the first!
Privacy
Shipments
Returns


Conical fixing bushing, also called taper-lock, taper-bush, conical bushing ..., are the most suitable and practical system for the assembly of sprockets, pulleys, and mechanical transmission elements on axles with chaveteros.

By using these elements, you avoid having to resort to special machining or particular tools. The pulley or transmission element is already supplied machined for the assembly of these elements, so they allow a great saving of time and ease of assembly.

The conical bushing is supplied with the hole and chavetero already machined to the diameter selected by the customer, with all prisoners and screws.

They are supplied in GG25 machined iron.

Dimensions:

Dimensiones-taper

  • Size: 3020.
  • Available diameters: 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70 and 75.
  • Tightening torque: 90.0.
  • D1: 108.0 mm.
  • Type: A.
  • S: 50.8

Dimensions of the chavetero as a function of the diameter of the shaft:

Dimensiones-agujero-metrico

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

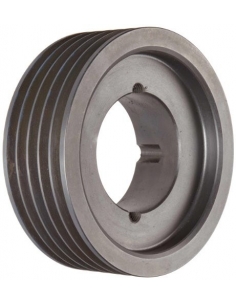

SPB 300x3 V-belt Pulley T3020 Plugper - adajusa.com.com.;
