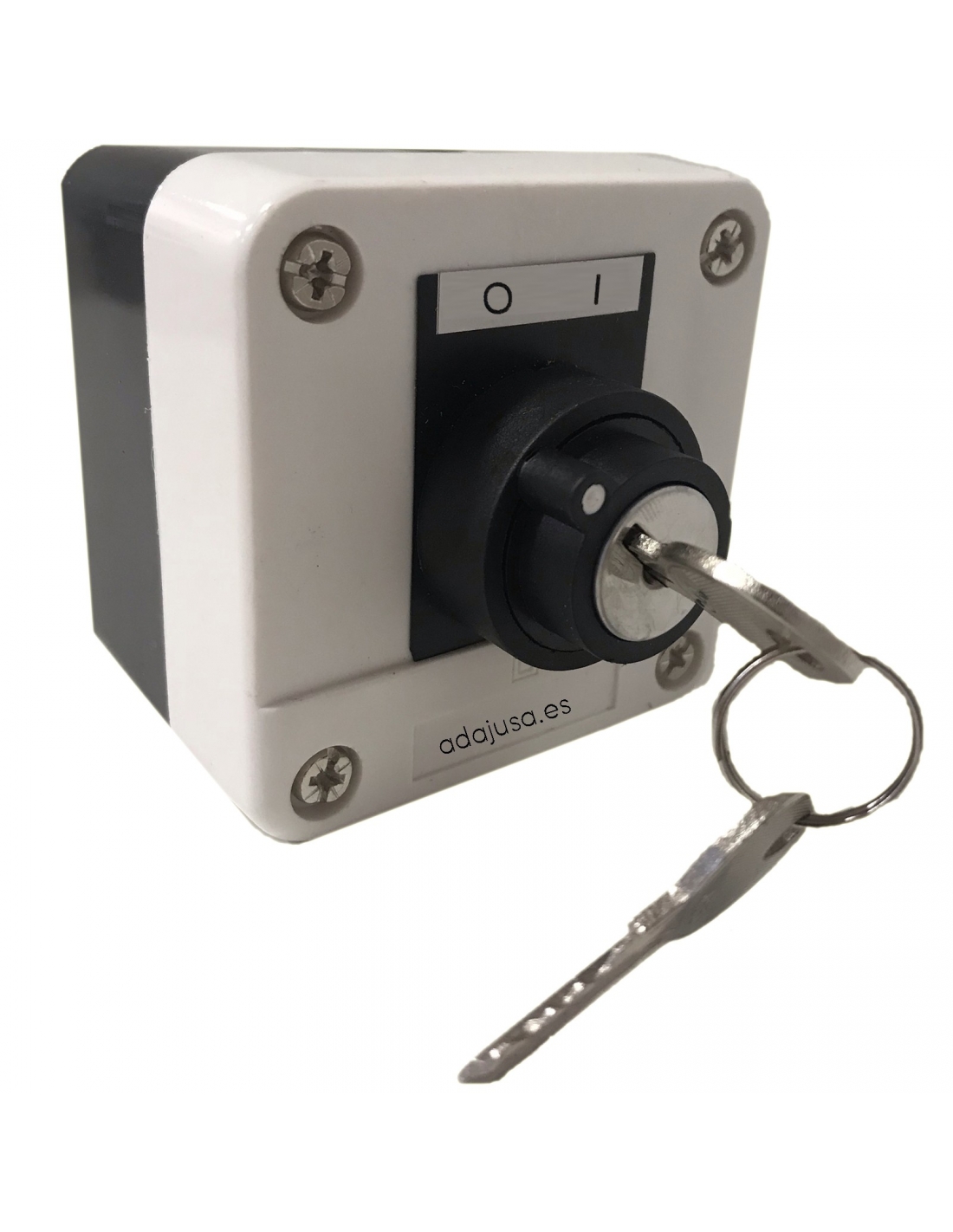

Selector box with key 2 positions O-I complete
Selector box with key 2 positions O-I complete

Selector box with key 2 positions O-I complete

€7.79 Tax included

€6.44 tax excl.

Box with selector 2 positions with key (O-I) complete. Box and selector made of black-white plastic. The key is extracted at position "0".

The supply includes the selector with full key, box and a no, all mounted.

Reference: XAL-B144H29

Esquema eléctrico selector dos posiciones

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with selector two fixed positions activated by key, with inscription "O-I", an open contact (NA). Black and white case. The key is removed in the "O" position.

The supply includes the complete selector, box and an open contact, all assembled.

The box supports mounting additional contact, open or closed. The maximum number of contacts per item is 2.

The dimensions of the case are: 68x68x51mm.

Features:

  • Manufacturer/Supplier: Denor
  • Ref: XAL-B144H29
  • Selector type: 2 fixed positions (O-I).
  • Key removal: Only in "O" position.
  • Black-white plastic case.
  • Box height: 51mm.
  • Contact: 1 NA.
  • Hole diameter: 22mm.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 m.
  • Degree of protection: IP40.

Dimensiones cajas pulsadores montadas XAL

Dimensiones caja pulsadores montada
